Don't let inefficient components hold back your projects. Opt for our power diodes and experience a new level of power efficiency and reliability. Whether you're designing for tough industrial environments or sophisticated electronic gadgets, our diodes provide the perfect blend of performance and durability.
Our PROSEMI Rectifier Diodes are engineered for high-efficiency, reliable performance in a wide range of power conversion applications. Designed to handle high currents and voltages, these diodes offer fast switching, low forward voltage drop, and minimal power loss, making them ideal for power supplies, DC-DC converters, motor control, and industrial equipment.
With a focus on quality and durability, our PROSEMI Rectifier Diodes provide superior protection and long-lasting performance in demanding environments. As a trusted partner to distributors, we offer competitive pricing, fast delivery times, and a comprehensive range of specifications to meet your customers' diverse needs. Ensure your product offerings are backed by top-tier components that deliver reliability and efficiency—choose PROSEMI Rectifier Diodes for your next project.
| Model | Package | IF(AV) (A) | VF(V) Max. | VF(V) @IF(A) | VRRM (V) | IR (uA) | Trr(ns) | Automotive | |
|---|---|---|---|---|---|---|---|---|---|
| S2AA | SMA | 2 | 1.1 | 2 | 50 | 5 | No | ||
| S2BA | SMA | 2 | 1.1 | 2 | 100 | 5 | No | ||
| S2DA | SMA | 2 | 1.1 | 2 | 200 | 5 | No | ||
| S2GA | SMA | 2 | 1.1 | 2 | 400 | 5 | No | ||
| S2JA | SMA | 2 | 1.1 | 2 | 600 | 5 | No | ||
| S2KA | SMA | 2 | 1.1 | 2 | 800 | 5 | No | ||
| S2MA | SMA | 2 | 1.1 | 2 | 1000 | 5 | No | ||
| S2PA | SMA | 2 | 1.1 | 2 | 1300 | 5 | No | ||
| S2TA | SMA | 2 | 1.1 | 2 | 1600 | 5 | No | ||
| S2AF | SMAF | 2 | 1.1 | 2 | 50 | 5 | No | ||
| S2BF | SMAF | 2 | 1.1 | 2 | 100 | 5 | No | ||
| S2DF | SMAF | 2 | 1.1 | 2 | 200 | 5 | No | ||
| S2GF | SMAF | 2 | 1.1 | 2 | 400 | 5 | No | ||
| S2JF | SMAF | 2 | 1.1 | 2 | 600 | 5 | No | ||
| S2KF | SMAF | 2 | 1.1 | 2 | 800 | 5 | No | ||
| S2MF | SMAF | 2 | 1.1 | 2 | 1000 | 5 | No | ||
| S2A | SMB | 2 | 1.1 | 2 | 50 | 5 | No | ||
| S2B | SMB | 2 | 1.1 | 2 | 100 | 5 | No | ||
| S2D | SMB | 2 | 1.1 | 2 | 200 | 5 | No | ||
| S2G | SMB | 2 | 1.1 | 2 | 400 | 5 | No | ||
| S2J | SMB | 2 | 1.1 | 2 | 600 | 5 | No | ||
| S2K | SMB | 2 | 1.1 | 2 | 800 | 5 | No | ||
| S2M | SMB | 2 | 1.1 | 2 | 1000 | 5 | No | ||
| S2ABF | SMBF | 2 | 1.1 | 2 | 50 | 5 | No |
Our operations are backed by the top certifications, proving our dedication to excellence:
1.ISO 9001 and ISO 14001 - Our commitment to quality management and environmental management systems assures efficiency and sustainability in every process.
2.IATF16949 Automotive System - We meet the stringent requirements of the automotive industry, emphasizing defect prevention and the reduction of variation and waste in the supply chain.
3.AEC-Q200 Certification - This certification stands as a testament to our products' reliability and performance in automotive electronics.
4.Comprehensive Environmental Quality Certifications - With UL, REACH, RoHS, VED, and HF certifications, our products meet the highest standards of environmental safety, reducing harmful impacts.

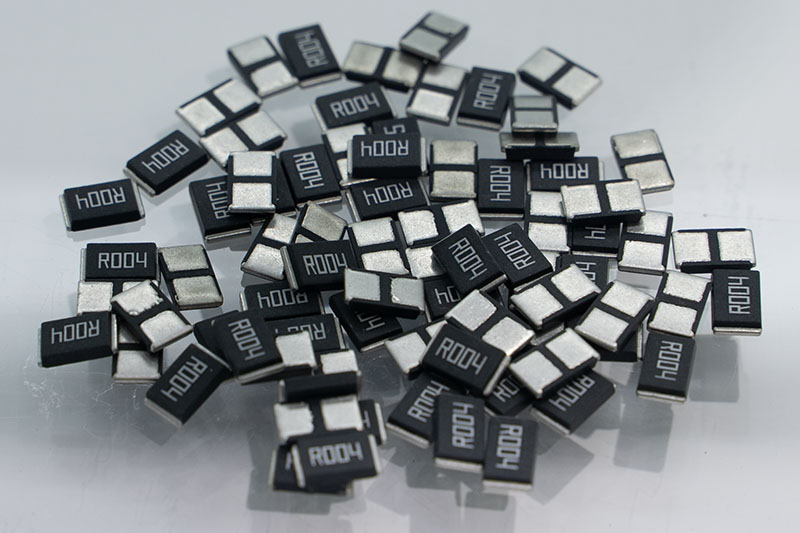

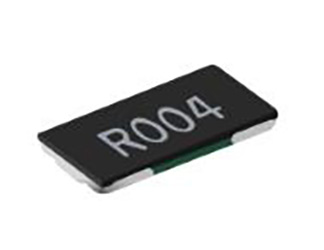

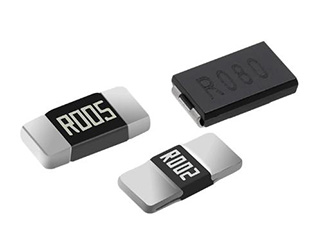

We take pride in our capability to produce the thinnest chip precision alloy resistors, with thicknesses as minimal as ≤0.35mm. This positions us as the sole manufacturer in China capable of designing, developing, and producing full-size chip precision alloy current sensing resistors ranging from 0402 to 5930 sizes.
Understand that each project carries its unique challenges. Therefore, we offer flexible delivery cycles varying from 6 to 12 weeks, tailored to meet your specific needs without compromising on quality or environmental integrity.
