PHS-8436-N
Features
- Electron beam welding process;
- High reliability, high overload capacity;
- Non-inductive design with wide operating temperature range, inductance less than 3 nanohenries;
- Electrodes are fully nickel-tin plated.
Electrical parameters
| Series | Rated Power | Resistance | Resistance Tolerance | Operating Temperature | 20℃~60℃ Temperature Coefficient (TCR) | Material |
|---|---|---|---|---|---|---|
| PHS | 50W | 25μΩ | 5% | -55℃~+170℃ | ±150 | CuMn |
"*" : For other resistance values, contact the factory
Series naming
PHS 8436 - 0M025 J - M2N
【1】 【2】 【3】 【4】 【5】
【1】Series Name: PHS Series Shunt；
【2】Product size: 8436: length 84mm, width 36mm
【3】Resistance: 0M025: 25μΩ;
【4】Resistance accuracy: J: 5%;
【5】Internal identification code: M2N: manganese copper + electrode fully plated with nickel tin + standard type.

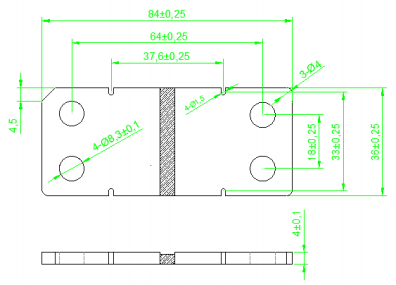

Product size

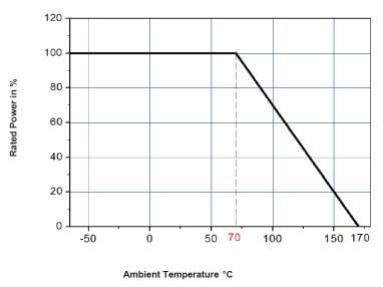

For resistors operating at an ambient temperature of 70°C, the rated power is reduced according to the following curve:
Power curve
For resistors operating at an ambient temperature of 70°C, the rated power is reduced according to the following curve:
Packaging
Bag packing, 1pcs per bag or customized
