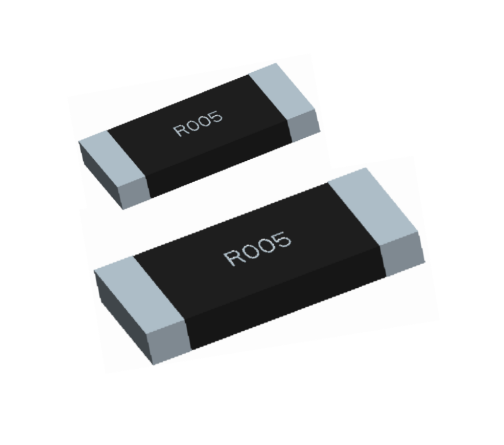

LMR45
Description
- Welded construction product
- Resistance range: 1~200mR
- Rated power:4~5W
- Low inductance design
- Alloy Material, Shock Resistance
- Operating temperature range:-65℃~170℃
Applications
- Current sensing application
- Over current protection
- Servo motor control circuits
- Inverter power
- Electric control system
- Li-battery management system
Part number
LMR 45; F 5P0 R005
【 1】 【2】 【3】 【4】 【5】
【 1 】Series Name: Low resistence Metal strip Chip Resistors
【2 】Chip size: 45:4527
【3】 Resistance Precision: D:±0.5% ; F:±1% ; G:±2% ; J:±5%
【4】 Power Rating: 5P0=5W ; 4P0=4W
【5】 Resistance Code: R005: 5mΩ ; R050: 50mΩ
Standard Electrical Specifications
Size | Power (W)(70℃) | Resistance/mΩ | TCR (ppm/℃) | Material | Operating Temperature (℃) |
---|---|---|---|---|---|
±0.5%, ±1%, ±2%, ±5% | |||||
4527 | 5 | 1 ~ 3 | ±75 | Manganin Kamar | -65℃~170℃ |
4 ~100 | ±50 | ||||
4 | 101 ~200 |
Note: (1) Products of differentsizes are being verified by power rating tests at other ambient temperatures.
Products & Recommend Pad Dimension
Unit:mm

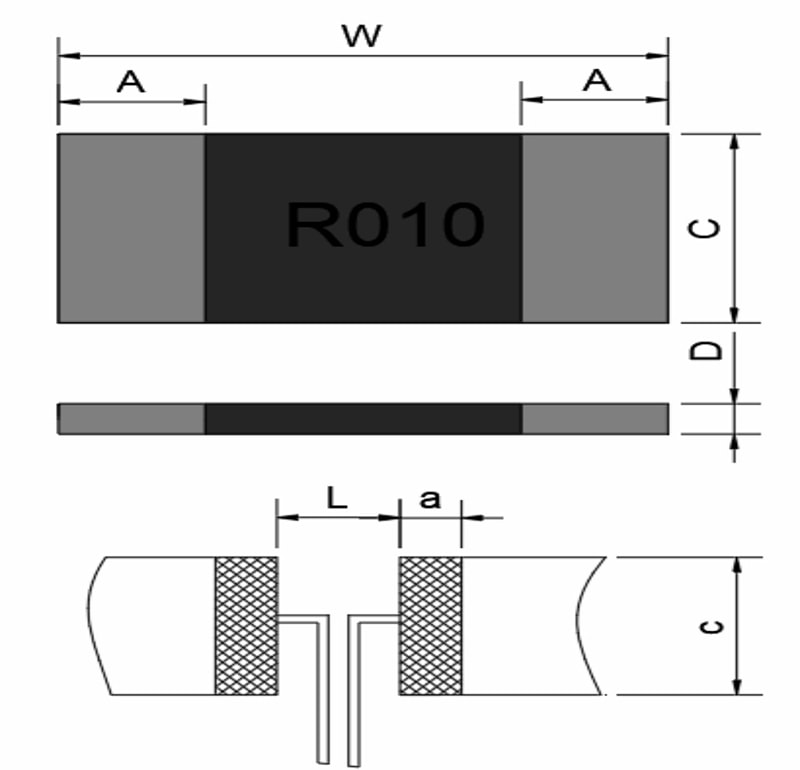

Type | Resistance | W±0.2 | C±0.2 | A±0.2 | D±0.1 | L | a | c |
---|---|---|---|---|---|---|---|---|
4527 | 1 ~ 200 | 11.6 | 6.9 | 2.0 | 1.0 | 7.0 | 3.4 | 8.7 |

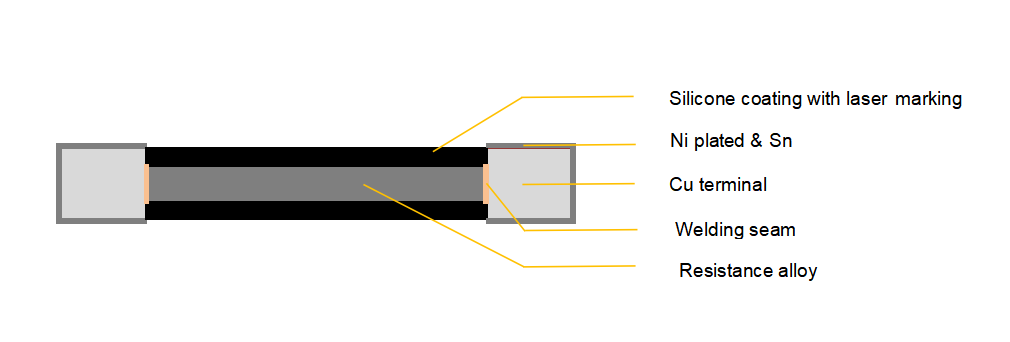

Welded Construction
Power Derating Curve

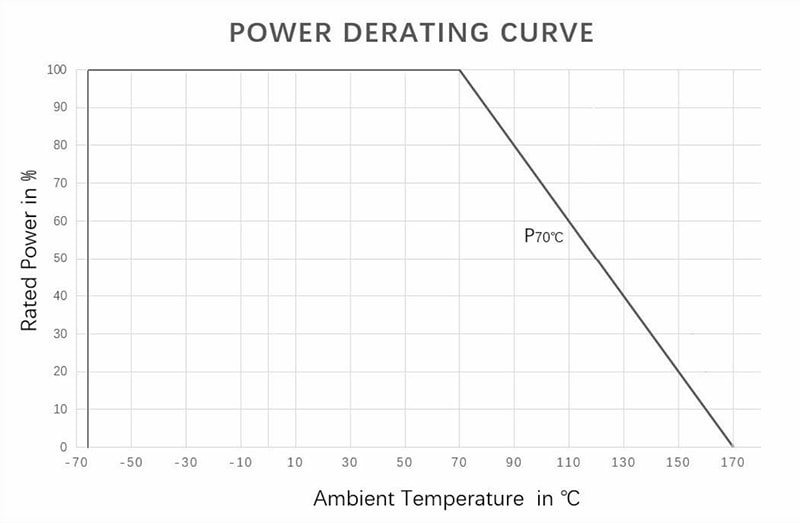

For resistors operated in ambient temperatures 70°C, power ratingshall bederated inaccording with the curve below:
Recommended Solder Curve
Reflow Condition | Pb – Free assembly | |
---|---|---|
Pre heat | - Temperature Min (Ts(min)) | 150°C |
- Temperature Max (Ts(max)) | 200°C | |
- Time (Min to Max) (ts) | 60 – 120 secs | |
Average ramp up rate (Liquidus Temp (TL) to peak | 5°C/second max | |
TS(max) to TL - Ramp-up Rate | 5°C/second max | |
Reflow | - Temperature (TL) (Liquidus) | 217°C |
- Temperature (tL) | 60 – 150 seconds | |
Peak Temperature (TP) | 260°C | |
Time within 5°C of actual peak Temperature (tp) | 20 – 40 seconds | |
Ramp-down Rate | 5°C/second max | |
Time 25°C to peak Temperature (TP) | 8 minutes Max. | |
Wave Soldering | 260°C, 10 seconds max. | |
Hand Soldering | 350°C, 5 seconds max. |
Product Characteristics
Item | Additional Requirements | Limited | Reference |
---|---|---|---|
Temperature Cycling | 1000 Cycles (-55℃ to +150℃) | ±0.5% | JESD22 Method JA-104 |
High Temperature Exposure | 100hrs.@T=170℃.Unpowered. | ±0.5% | MIL-STD-202 Method 108 |
Moisture Resistance | t=24hrs/cycle.Note: Steps 7a & 7b not required. Unpowered. | ±0.5% | MIL-STD-202 Method 106 |
Biased Humidity | 1000hrs 85℃/85%RH 。Note: Specified conditions:10% of operating power. | ±0.5% | MIL-STD-202 Method 103 |
Operational Life | Condition D Steady State TA=125℃ at rated power. | ±0.5% | MIL-STD-202 Method 108 |
Thermal Shock | 1000X(-55°C to +150°C) | 0.5% | MIL-STD-202Met hod107G |
Solderability | 235℃±5℃,2s±0.5s | 95% Coverage Minimum | J-STD-202 |
Resistance to Soldering Heat | 260℃±5℃, 10s±1s | ±0.5% | MIL-STD-202 Method 210 |
Short Time Overload | 4×Rated power for 5 s | ±0.5% | MIL-STD-202 Method 201 |
Shock | 100g , 6ms , axes Z and Y , 10 Shocks per axis | 0.5% | MIL-STD-202 Method 213 |
VIBRATION | (10 - 2000 HZ) , 20g @0.1ms | 0.5% | MIL-STD-202Met hod204 |
Tapping & Package

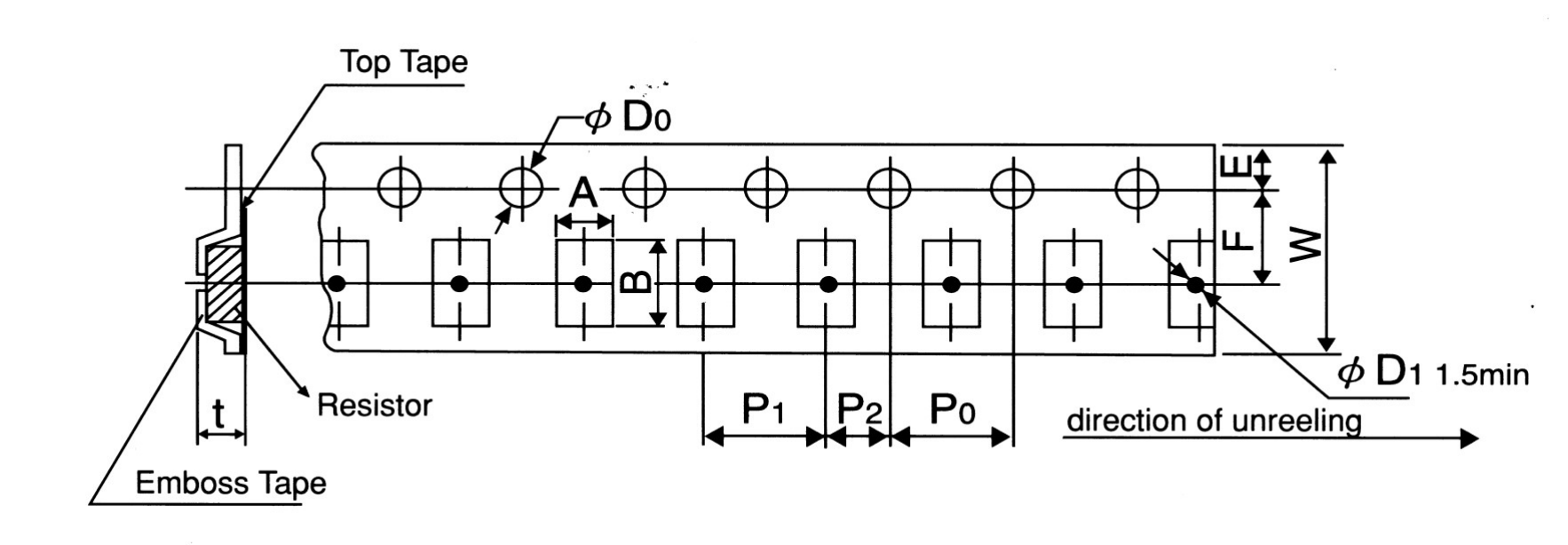

Type | Pack | A ±0.2 | B ±0.2 | D0 +0.5-0 | E ±0.1 | F ±0.05 | P0 ±0.1 | P1 ±0.1 | P2 ±0.1 | W ±0.2 | D1 ±0.05 | t ±0.15 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4527 | Emboss | 7.40 | 11.80 | 1.50 | 1.75 | 11.50 | 4.00 | 12.0 | 2.00 | 24.00 | 1.50 | 2.30 |
Packaging
Quantity: 3.000pcs
Storage
1. The temperature condition must be controlled at 25±5℃, The R.H. must be controlled at 60±15% Store in accordance with this requirement, and the validity period is two years after the date of manufacture。
2. Please avoid the mentioned harsh environment below when storing to ensure product performance and its’ weldability. Places exposed to sea breeze or other corrosive gas,such as Cl2 、H2S 、NH3、 SO2 and NO2.
3. When the product is moved and stored, please ensure the correct orientation of the box.Do not drop or squeeze the box. Otherwise, the electrode or the body of the product may be damaged.
