LMN25
Description
- Proprietary processing technique produces extremely low resistance values
- Very low inductance
- Low thermal EMF
- Metallic Material

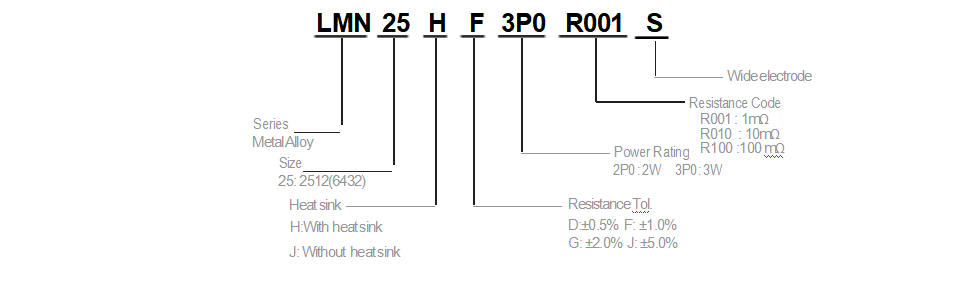

Part Numbering System
| Parameter | Standard |
|---|---|
| Power Rating | 1~100mΩ : 2~3W |
| Resistance Value | 1~100mΩ |
| Operating Temperature Range | -55 to +170°C |
| Component Temperature Coefficient (TCR) | ± 50 ppm/°C |
| Maximum Working Voltage (V) | (P × R)¹/² |
| Rating Current (A) | (P / R)¹/² |
P=Power Rating; R=Resistance Value
Standard Electrical Specifications
| Type | Rating Power at 70℃ | T.C.R. (ppm/℃) | Resistance Range(mΩ) ±0.5%（D） ±1.0%（F） ±2.0%（G） ±5.0%（J） | Meterial | Electrode | Operating Temperature(℃) |
|---|---|---|---|---|---|---|
| LMN25J | 2W | 50 | 1-4 | CuMn | R001-R004:Wide | -55~+170°C |
| 2-10 | R002-R100:Narrow | |||||
| LMN25H | 2W&3W | 1-4 | R001-R004:Wide | |||
| 2-100 | R002-R100:Narrow |
construction
Unit: Millimeters
| Type | Power | L | W | C | t |
|---|---|---|---|---|---|
| LMN25 | 2W&3W | 6.4 ±0.2 | 3.2 ±0.2 | 0.95±0.25 (Narrow) | 0.9±0.2 |
| 2.1±0.25 (Wide) |
Recommended land pattern
Unit: Millimeters
| Resistance Range ( Ω ) | a | b | L |
|---|---|---|---|
| 0.001-0.004(Wide) | 4.0±0.1 | 3.1±0.1 | 1.3±0.1 |
| 0.002~0.100(Narrow) | 4.0±0.1 | 2.1±0.1 | 4.1±0.1 |

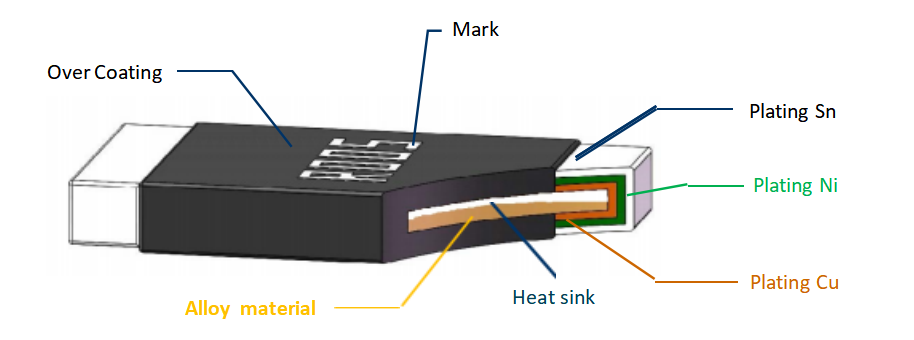

Product structure diagram

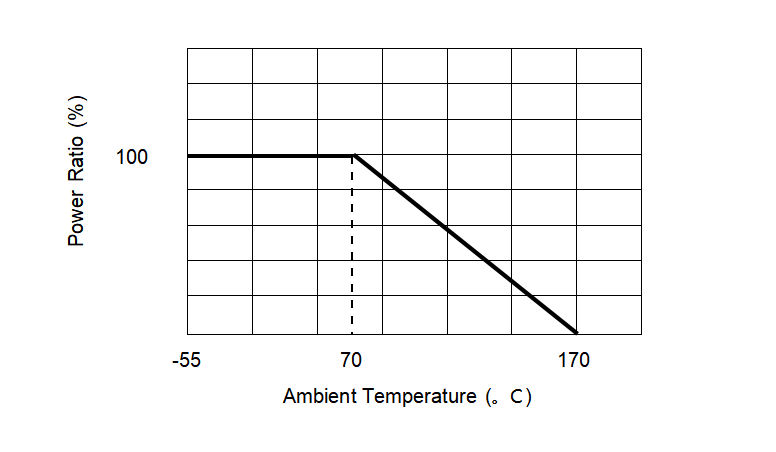

Power Derating Curve
For resistors operated in ambient temperatures 70°C, power ratingshall bederated inaccording with the curve below:
Recommended Solder Cuve
| Reflow Condition | Pb – Free assembly | |
|---|---|---|
| Pre heat | - Temperature Min (Ts(min)) | 150°C |
| - Temperature Max (Ts(max)) | 200°C | |
| - Time (Min to Max) (ts) | 60 – 120 secs | |
| Average ramp up rate (Liquidus Temp (TL) to peak | 5°C/second max | |
| TS(max) to TL - Ramp-up Rate | 5°C/second max | |
| Reflow | - Temperature (TL) (Liquidus) | 217°C |
| - Time(tL) | 60 – 150 seconds | |
| Peak Temperature (TP) | 260°C | |
| Time within 5°C of actual peak Temperature (tp) | 20 – 40 seconds | |
| Ramp-down Rate | 5°C/second max | |
| Time 25°C to peak Temperature (TP) | 8 minutes Max. | |
| Wave Soldering | 260°C, 10 seconds max. | |
| Hand Soldering | 350°C, 5 seconds max. | |
Product Characteristics
| Item | Test condition/ Methods | Limited | Standard |
|---|---|---|---|
| Resistance | Measuring resistance value at room temperature 25℃±5℃ | Refer to Spec | IEC60115-1 4.5 |
| Temperature coefficient of resistance | TCR =(R-R0)/R0(T2-T1)X 106 T1 T2 R0 : resistance of room temperature R: resistance of 125℃ T1: Room temperature T2: Temperature at 125℃ | Refer to Spec | MIL-STD-202 Method 304 |
| Short time Overload | Apply overload for 5 seconds and measure the resistance change rate after standing for 24 hours. 5 times the rated power for 5 seconds | ≤±0.5% | MIL-R-26E |
| Resistance to Soldering Heat | 260℃± 5℃ time ：10sec± 1sec | ≤±0.5% | MIL-STD-202 Method 210 |
| Temperature Cycling | -55℃ (30min)/+125℃(30min), 1000 cycles | ≤±0.5% | MIL-STD-202 Method107G |
| Low temperature Storage | -55℃ for 1000hours, No power | ≤±0.5% | MIL-STD-26E |
| High Temperature Storage | 125℃ for 1000hours, No power | ≤±1% | IEC6011501-4.25 |
| Bias Humidity | +85℃, 85% RH ，10%bias, 1000hours | ≤±0.5% | MIL-STD-202 Method103 |
| Joint Strength of Solder | Soldered on the bending test plate, put on the bending testing machine, pressed under force in the center of the test plate, measure its resistance variance rate under load | ≤±0.5% | JIS-C5201 |
| Solderability | 245±5℃ , 2±0.5sec | At least 95% of surface area of electrodeshall be covered with new solder | IEC60115-1-4.17 JIS-C5201-4.17 |
| Operational life | 70℃± 2℃, 1000 hours, at rated power 1.5 hours “ON”, 0.5 hours “OFF” | ≤±1% | MIL-STD-202 Method 108 |

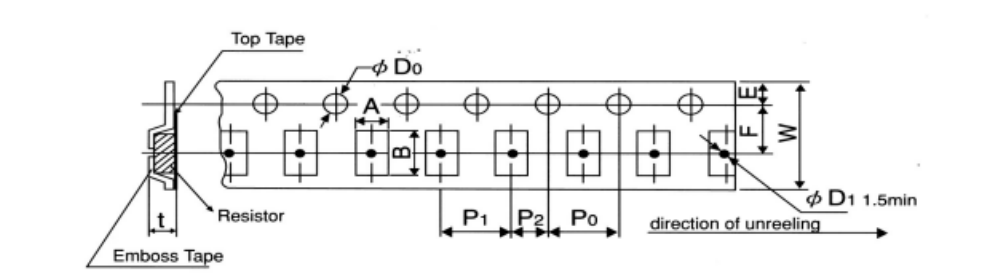

Tapping & Package
| Type | Pack | A ±0.2 | B ±0.2 | D0 +0.5-0 |
F ±0.05 | P0 ±0.1 | P1 ±0.1 | P2 ±0.1 | W ±0.2 | D1 ±0.05 | T ±0.15 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2512 | Emboss | 3.60 | 6.90 | 1.50 | 1.75 | 5.50 | 4.00 | 4.00 | 2.00 | 12.00 | 1.50 | 1.20 |

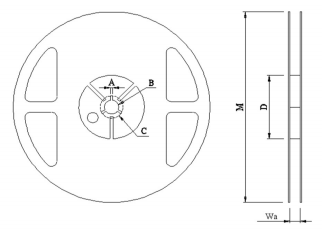

Reel Specification
| Type | A | B | C | D | M | W |
|---|---|---|---|---|---|---|
| 2512 | 2.00±0.5 | 13.50±0.5 | 21.00±0.5 | 80.00±1.0 | 178.00±2.0 | 13.80±0.5 |
Packaging
Quantity: 4, 000pcs
8mm wide tape on 178mm(7 inch) diameter reel -specification EIA
Standard 481.

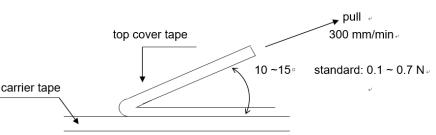

Peel strength of upper belt
Stripping speed: 300 mm / min; The peel force is between 0.1N and 0.7n.
Storage conditions & shelf life
It can be stored for 2 years under closed conditions with temperature of 5 ° C ~ 35 ° C and relative humidity of 40 ~ 75
Please avoid the following harsh environment during storage to avoid affecting the product
performance and solder connectivity: the places with corrosive gases such as sea breeze, Cl2, H2S, NH3, SO2 and NO2 shall be stored without direct sunlight.
Precautions for product use
When measuring the resistance value before welding, a special resistance meter with high precision shall be used. When measuring, a 4-wire probe or fixture must be used. 4. When measuring parts with a wire measuring needle, the 4 measuring needles must indeed contact the parts.
Avoid damaging the protective layer during manual welding or clamping with tweezers.
PCB is divided or fixed on the support, be careful to avoid excessive bending causing mechanical stress to the resistor.
It shall be used within the rated power range within the specification, especially when the power exceeds the rated value, which may affect the reliability of the product
