Industrial Sector

In the ever-evolving industrial landscape, PROSEMI has emerged as a trusted partner for numerous industrial manufacturers and automation systems with its exceptional electronic components and solutions. We specialize in providing high-performance, highly reliable electronic components and customized solutions for industrial automation, robotics, smart manufacturing, and industrial control, empowering the enhancement of production efficiency, optimization of production processes, and driving the advent of Industry 4.0. PROSEMI is committed to leveraging technological innovations and customized services to cater to the diverse needs of the industrial sector, contributing our wisdom and strength to the global industrial development.

Contact Us For More Info
Industrial Sector
Model Package Series TCR (ppm/℃) Resistance Value (mΩ) Power Rating (W or A) Tolerance(%) Automotive PDF
LMR20 2010 LMR20 ±50~75 0.5~100 1、2 0.5、1、2、5 No
LMA2728 2728 LMA2728 ±50 3~50 4 1、2、5 No
LMA2725 2725 LMA2725 ±50~100 0.2~3 4 1、2、5 No
PLRB25 2512 PLRB25 ±50 1~500 2~3 0.5、1、2、5 No
PLRA25 2512 PLRA25 ±50 1~10 2 0.5、1、2、5 No
ALMJ20 2010 ALMJ20 ±50 1~100 1~1.5 0.5、 1、2、5 Yes
LMJ20 2010 LMJ20 +50 1~100 1~1.5 0.5、1、2、5 No
LMJ12 1206 LMJ12 ±50 1~200 0.5~1 0.5、1、2、5 No
LMJ25 2512 LMJ25 ±50 0.5~1 2~3 0.5、1、2、5 No
LMJ25 2512 LMJ25 ±50 1~10 2 0.5、1、2、5 No
LMP25 2512 LMP25 ±50 1~500 2~3 0.5、1、2、5 No
LMN25 2512 LMN25 ±50 1~100 2~3 0.5、1、2、5 No
LMR2725 2725 LMR2725 ±75~200 0.2~3 4 1、2、5 No
LMR2728 2728 LMR2728 ±75 3~50 4 1、2、5 No
LMR28 2818 LMR28 ±75~200 1~50 5 0.5、1、2、5 No
More Metal Alloy Current Sense Resistors
Model Interrupting Rating Voltage Rating (V) Ampere Rating (A) Typical Cold Resistance (mΩ) Typical Melting I²t (A²Sec) Dimension (mm) 1.0In Power loss (W) Automotive PDF
10CT120-31.5DA 500VAC @ 1500A 125VDC @ 1500A 500VAC 31.5 3.55 1500 10x38mm 5.2 No
10CT120-32DA 500VAC @ 1500A 125VDC @ 1500A 500VAC 32 3.55 1500 10x38mm 5.2 No
10CT120-40DA 500VAC @ 1500A 125VDC @ 1500A 500VAC 40 2.45 4600 10x38mm 5.7 No
10CT120-50DA 500VAC @ 1500A 125VDC @ 1500A 500VAC 50 2 2600 10x38mm 9 No
10CT120-63DA 250VAC @ 2500A 125VDC @ 1500A 250VAC 63 1.5 7500 10x38mm 9.8 No
10CT120-80DA 250VAC @ 2500A 125VDC @ 1500A 250VAC 80 1.04 24000 10x38mm 10.4 No
10CT2-10A 200Vdc@50KA 200VDC 10 240 10x28.5mm（Max) Yes
10CT2-15A 200Vdc@50KA 200VDC 15 670 10x28.5mm（Max) Yes
10CT2-20A 200Vdc@50KA 200VDC 20 980 10x28.5mm（Max) Yes
10CT2-25A 200Vdc@50KA 200VDC 25 1900 10x28.5mm（Max) Yes
10CT2-30A 200Vdc@50KA 200VDC 30 900 10x28.5mm（Max) Yes
10CT2-40A 200Vdc@50KA 200VDC 40 1950 10x28.5mm（Max) Yes
10CT2-50A 200Vdc@50KA 200VDC 50 2950 10x28.5mm（Max) Yes
10CT2-63A 200Vdc@50KA 200VDC 63 7400 10x28.5mm（Max) Yes
10CT2-80A 200Vdc@50KA 200VDC 80 10800 10x28.5mm（Max) Yes
More Ceramic Tubular Fuse
Model Package Power dissipation Ppk(W) Reverse Stand-off Voltage VRWM(V) Breakdown Voltage VBR @ IT Min.(V) Breakdown Voltage VBR @ IT Max.(V) Test Current IT(mA) Max. Clamping Voltage @ IPP VC MAX.(V) Max. Peak Pulse Current IPP(A) Max. Reverse Leakage @ VRWM IR(uA) Automotive PDF
30KP288CA-T R-6 30000 288 319.8 353.4 5 469.9 64.5 2 Yes
30KP288A-T R-6 30000 288 319.8 353.4 5 469.9 64.5 2 Yes
30KP216A-T R-6 30000 216 240 365.2 5 348.6 86.9 2 Yes
30KP280CA-T R-6 30000 280 312.6 342.2 5 464 65.3 2 Yes
30KP280A-T R-6 30000 280 312.6 342.2 5 464 65.3 2 Yes
30KP270CA-T R-6 30000 270 300 331.8 5 436.2 69.5 2 Yes
30KP270A-T R-6 30000 270 300 331.8 5 436.2 69.5 2 Yes
30KP260CA-T R-6 30000 260 290.2 317.8 5 416.4 72.8 2 Yes
30KP260A-T R-6 30000 260 290.2 317.8 5 416.4 72.8 2 Yes
30KP258CA-T R-6 30000 258 286.8 316.8 5 416.4 72.8 2 Yes
30KP258A-T R-6 30000 258 286.8 316.8 5 416.4 72.8 2 Yes
30KP240CA-T R-6 30000 240 266.4 294.6 5 387 78.3 2 Yes
30KP240A-T R-6 30000 240 266.4 294.6 5 387 78.3 2 Yes
30KP216CA-T R-6 30000 216 240 365.2 5 348.6 86.9 2 Yes
30KP198CA-T R-6 30000 198 220.2 243.6 5 319.8 94.7 2 Yes
More Transient Voltage Suppressor Diode
Model DC spark-over voltage (100V/S) V DC spark-over voltage (100V/S) % Impulse spark-over Voltage(@1KV/us) V Nominal impulse discharge current (8/20us,±5 applications) KA Insulation resistance GΩ Insulation resistance DC Capacitance (at 1MHz) pF Installation method Size Automotive PDF
PG2D12N090 90 20 ≤700 0.5 ≥1 50V ≤0.6 SMD 1206/3216 (3.2x1.6x1.6mm) No
PG2D12N150 150 25 ≤750 0.5 ≥1 50V ≤0.6 SMD 1206/3216 (3.2x1.6x1.6mm) No
PG2D12N230 230 20 ≤800 0.5 ≥1 100V ≤0.6 SMD 1206/3216 (3.2x1.6x1.6mm) No
PG2D12N350 350 20 ≤850 0.5 ≥1 100V ≤0.6 SMD 1206/3216 (3.2x1.6x1.6mm) No
PG2D12N470 470 20 ≤1050 0.5 ≥1 100V ≤0.6 SMD 1206/3216 (3.2x1.6x1.6mm) No
PG2D12N600 600 20 ≤1200 0.5 ≥1 100V ≤0.6 SMD 1206/3216 (3.2x1.6x1.6mm) No
PG2D18N090 90 25 ≤700 1 ≥1 50V ≤0.8 SMD 1812/4532 (4.5x3.2x2.7mm) No
PG2D18N150 150 25 ≤750 1 ≥1 50V ≤0.8 SMD 1812/4532 (4.5x3.2x2.7mm) No
PG2D18N230 230 20 ≤800 1 ≥1 100V ≤0.8 SMD 1812/4532 (4.5x3.2x2.7mm) No
PG2D18N350 350 20 ≤850 1 ≥1 100V ≤0.8 SMD 1812/4532 (4.5x3.2x2.7mm) No
PG2D18N470 470 20 ≤1050 1 ≥1 100V ≤0.8 SMD 1812/4532 (4.5x3.2x2.7mm) No
PG2D18N600 600 20 ≤1200 1 ≥1 100V ≤0.8 SMD 1812/4532 (4.5x3.2x2.7mm) No
PG5D5SN090A 90 25 ≤700 5 ≥1 50V ≤1 SMD φ5*5mm No
PG5D5SN150A 150 20 ≤750 5 ≥1 50V ≤1 SMD φ5*5mm No
PG5D5SN230A 230 20 ≤800 5 ≥1 100V ≤1 SMD φ5*5mm No
More Gas Discharge Tube
Model Package IF(AV) (A) VF(V) Max. VF(V) @IF(A) VRRM (V) IR (uA) Trr(ns) Automotive PDF
BAT54 SOT-23 0.2 1 0.1 30 2 5 No
BAT54A SOT-23 0.2 1 0.1 30 2 5 No
BAT54C SOT-23 0.2 1 0.1 30 2 3 No
BAT54S SOT-23 0.2 1 0.1 30 2 5 No
B0520W SOD123 0.5 0.385 0.5 20 250 No
B0530W SOD123 0.5 0.43 0.5 30 500 No
B0540W SOD123 0.5 0.51 0.5 40 20 No
B0520WS SOD323 0.5 0.39 0.5 20 250 No
B0530WS SOD323 0.5 0.45 0.5 30 500 No
B0540WS SOD323 0.5 0.51 0.5 40 20 No
1N5817 DO-41 1 0.45 1 20 500 No
1N5818 DO-41 1 0.55 1 30 500 No
1N5819 DO-41 1 0.55 1 40 500 No
SR120 DO-41 1 0.5 1 20 500 No
SR130 DO-41 1 0.5 1 30 500 No
More Schottky Diode
Model Package IF(AV) (A) VF(V) Max. VF(V) @IF(A) VRRM (V) IR (uA) Automotive PDF
ABS02 ABS 0.8 0.95 0.4 200 10 No
ABS04 ABS 0.8 0.95 0.4 400 10 No
ABS06 ABS 0.8 0.95 0.4 600 10 No
ABS08 ABS 0.8 0.95 0.4 800 10 No
ABS10 ABS 0.8 0.95 0.4 1000 10 No
ABS202 ABS 2 1.1 1 200 10 No
ABS204 ABS 2 1.1 1 400 10 No
ABS206 ABS 2 1.1 1 600 10 No
ABS208 ABS 2 1.1 1 800 10 No
ABS210 ABS 2 1.1 1 1000 10 No
MB2M MBM 0.5 1 0.4 200 5 No
MB4M MBM 0.5 1 0.4 400 5 No
MB6M MBM 0.5 1 0.4 600 5 No
MB8M MBM 0.5 1 0.4 800 5 No
MB10M MBM 0.5 1 0.4 1000 5 No
More Bridge Rectifier

Our Application

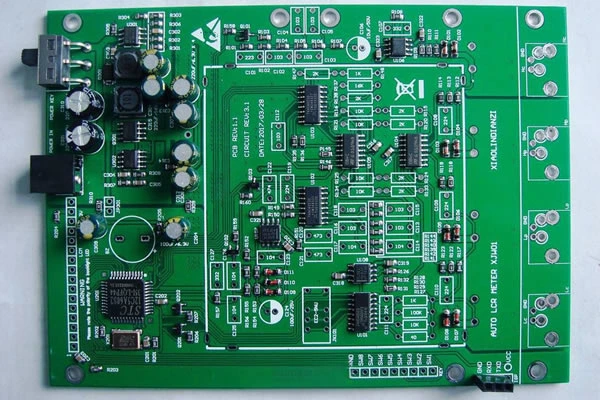

Precision Low-Resistance Alloy Resistors in Precision Measurement and Calibration Equipment

Precision Low-Resistance Alloy Resistors in Precision Measurement and Calibration Equipment

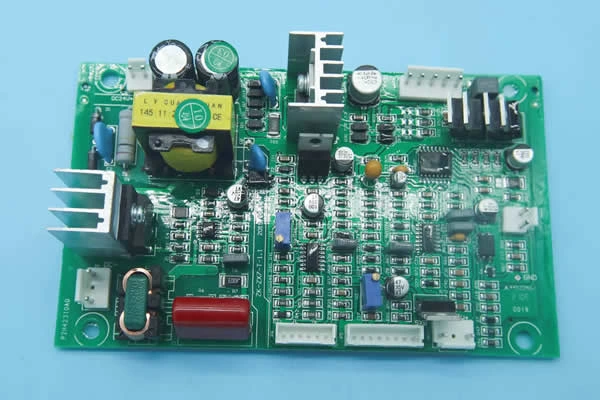

Precision Low-Resistance Alloy Resistors in Automation Control Systems

Precision Low-Resistance Alloy Resistors in Automation Control Systems

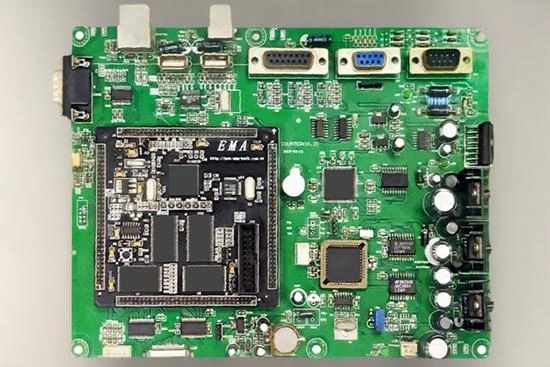

Precision Low-Resistance Alloy Resistors in Sensors and Measuring Instruments

Precision Low-Resistance Alloy Resistors in Sensors and Measuring Instruments
