SMD Micro-Resistance Precision Alloy Current Sensing Resistors in Electronic Cigarette Protection Systems

Publish Time:

Overview

As the electronic cigarette (e-cigarette) market continues to grow, ensuring the safety, efficiency, and performance of these devices becomes paramount. E-cigarettes, particularly vape pens and e-cigarette mods, rely on advanced electronics for functions such as temperature control, power regulation, and battery management. To ensure safe operation, these devices must be equipped with protection systems that prevent overcharging, overheating, overcurrent, and short circuits.

A critical component in these protection systems is the SMD (Surface-Mount Device) micro-resistance precision alloy current-sensing resistor. These resistors are used to monitor the current flow through the device’s battery and circuitry, providing essential feedback to the system's protection mechanisms. The accurate measurement of current is vital for preventing battery overheating or failure, which could lead to dangerous situations such as battery venting, fire, or explosion.

SMD Micro-Resistance Precision Alloy Current Sensing Resistors in Electronic Cigarette Protection Systems

 Role and application of SMD Micro-Resistance Precision Alloy Current Sensing Resistors in E-Cigarette Protection

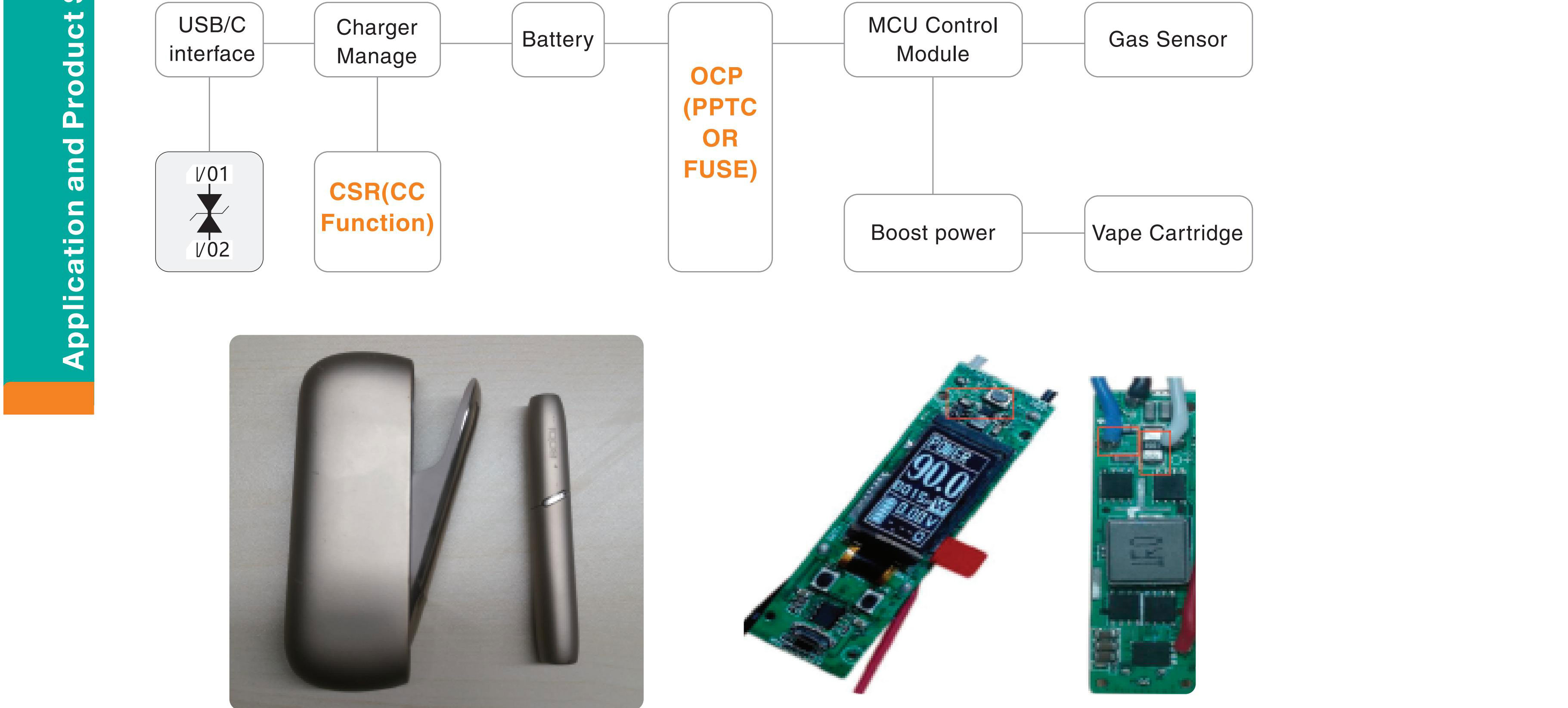

SMD micro-resistance precision alloy current sensing resistors are an ideal solution for current sensing in e-cigarette protection systems. These resistors are used to monitor the charging, discharging, and operational currents of the e-cigarette’s battery, providing critical data to the device’s electronic protection circuit. Below are specific applications where these resistors are used in e-cigarette protection systems:

 1. Overcurrent Protection

One of the most critical functions of the protection system in e-cigarettes is to prevent excessive current flow that could damage the battery, circuit, or the device itself. Overcurrent protection is achieved by sensing the current flowing from the battery to the atomizer, the heating element, and other components.

Application: The SMD micro-resistance precision alloy shunt resistor is placed in series with the battery circuit to monitor the current. If the current exceeds a predetermined threshold (due to a short circuit, malfunction, or misuse), the protection circuit can instantly cut off the power or activate a safety shutdown to prevent battery overheating or other failures.

Resistor Role: The precision and low tolerance (typically ±0.25% or better) of these resistors ensure that the current measurements are accurate and reliable, triggering protective responses quickly when overcurrent conditions arise. The low temperature coefficient (TCR) ensures that resistance does not change significantly with temperature, providing consistent performance.

 2. Battery Overcharge and Overdischarge Protection

E-cigarettes rely on lithium-ion batteries, which are sensitive to overcharging and overdischarging. Both of these conditions can lead to battery failure or even dangerous situations, such as venting or explosion.

Application: Current sensing resistors are used to measure the charging and discharging currents of the battery, ensuring that the current remains within safe limits during charging and use. By monitoring the current, the protection system can detect overcharging (too much current during charging) or overdischarge (too much current drawn from the battery) and take appropriate action to protect the battery.

Resistor Role: SMD micro-resistance precision alloy resistors provide the low-resistance values necessary for high current measurements while maintaining excellent accuracy and stability. These resistors ensure that the protection system detects abnormal conditions early and can prevent damage to the battery.

 3. Thermal Management and Safety Shutdown

Excessive current flow can cause heat to build up in the battery and electronic components, potentially leading to thermal runaway or fire. Accurate current sensing is used to identify high current situations that may result in dangerous heat levels.

Application: By using current sensing resistors to monitor the current, the protection circuit can detect conditions that could lead to excessive heat buildup, such as high discharge rates or internal short circuits. Once dangerous thresholds are exceeded, the system can trigger a thermal protection shutdown or alert the user to take corrective action.

Resistor Role: The thermal stability of SMD micro-resistance precision alloy shunt resistors ensures that they can withstand temperature fluctuations without affecting their performance. This provides the protection system with reliable data, even during prolonged use or under heavy load.

 4. Real-Time Battery Monitoring and Efficiency

For optimal battery life, e-cigarette devices must manage power consumption effectively. By accurately monitoring the charging and discharging currents, the device can optimize battery usage, ensuring that energy is used efficiently and extending the overall lifespan of the battery.

Application: The current sensing resistors continuously measure the current to monitor the state of charge (SOC) and ensure that the battery is not overstressed during regular use. This allows the protection system to balance energy usage, provide warnings when the battery is near empty, and extend battery life.

Resistor Role: Precision alloy shunt resistors offer high precision, low drift, and stable resistance over time, ensuring accurate monitoring of the battery’s current. These features enable more efficient power management, helping to reduce energy consumption and extend battery life.

 Key Benefits of SMD Micro-Resistance Precision Alloy Current Sensing Resistors in E-Cigarette Protection Systems

1. High Accuracy and Precision

   - With tolerances as low as ±0.25%, these resistors provide accurate current measurement to enable precise overcurrent detection, charge/discharge monitoring, and thermal protection in e-cigarette devices.

2. Thermal Stability

   - The low TCR of precision alloy resistors ensures that resistance values remain consistent over a wide range of operating temperatures, allowing for reliable performance under varying environmental conditions.

3. Compact and Lightweight

   - The SMD form factor allows for easy integration into the compact designs of e-cigarette devices, without adding bulk or weight, while still providing high performance.

4. High Current Handling

   - SMD precision alloy shunt resistors are designed to handle high currents (up to several amperes), making them ideal for use in devices powered by high-discharge-rate batteries like those in e-cigarettes.

5. Durability and Reliability

   - Designed to withstand mechanical stress and vibrations, these resistors provide long-lasting performance in portable, wearable devices like e-cigarettes, which are subjected to frequent handling and occasional drops.

SMD Micro-Resistance Precision Alloy Current Sensing Resistors in Electronic Cigarette Protection Systems

 Conclusion

In the rapidly growing e-cigarette market, safety and

reliability are of paramount importance. SMD micro-resistance precision alloy current sensing resistors play a critical role in e-cigarette protection systems, enabling the accurate measurement of current flow and providing the essential data needed for battery and thermal management, overcurrent protection, and overall device safety.

From the perspective of a resistor manufacturer, the demand for compact, durable, and precise current sensing components in e-cigarette devices is growing as the market becomes more regulated and consumers become more concerned with device safety. Our precision alloy current sensing resistors are designed to meet these needs, offering the accuracy, thermal stability, and high current handling required for advanced e-cigarette protection systems. By providing reliable current sensing, we help ensure that e-cigarette devices operate safely and efficiently, enhancing both user experience and device longevity.
